# Constant Rtot TMDD model

We here present the system of equation corresponding to the constant Rtot TMDD model, as well as the model behavior.

## Equations

If the degradation rates of the free receptor and the complex are similar (i.e. the binding of the ligand to

the receptor does not modify the receptor internalization rate), it may not be possible to identify both of them. If both rates are equal (), the total receptor concentration stays constant over time ( ) and the ODE system below can be derived, using the full model as starting point. This approximation is for instance analyzed in Peletier & Gabrielsson (2009). EJPS, 38(5). The equations read:

with *L* the *concentration* of the ligand in plasma and *P* the *concentration* of the complex. V is the volume of the central compartment for the ligand, k_{el} the linear elimination rate for the ligand, k_{on} the binding rate, k_{off} the dissociation rate, R0 the initial receptor concentration, and k_{int} the degradation rate of the complex. In(t) represents the input function, corresponding to the input rate (amount per unit time) of the ligand into the central compartment due to the ligand administration.

In the library model file, a slightly different parameterization is used using the dissociation constant (which replaces koff in the list of parameters). This permits to better separate the effect of each

parameter.

The free receptor concentration can be calculated via . Compared to the full model, the number of parameters is reduced by one, as ksyn and kdeg are replaced by R0.

With 2 compartments for the free ligand, one obtains:

with *A* the *amount* of ligand in peripheral tissues, k12 the rate of transfert from central to peripheral, and k21 the rate in the opposite direction.

## Model properties

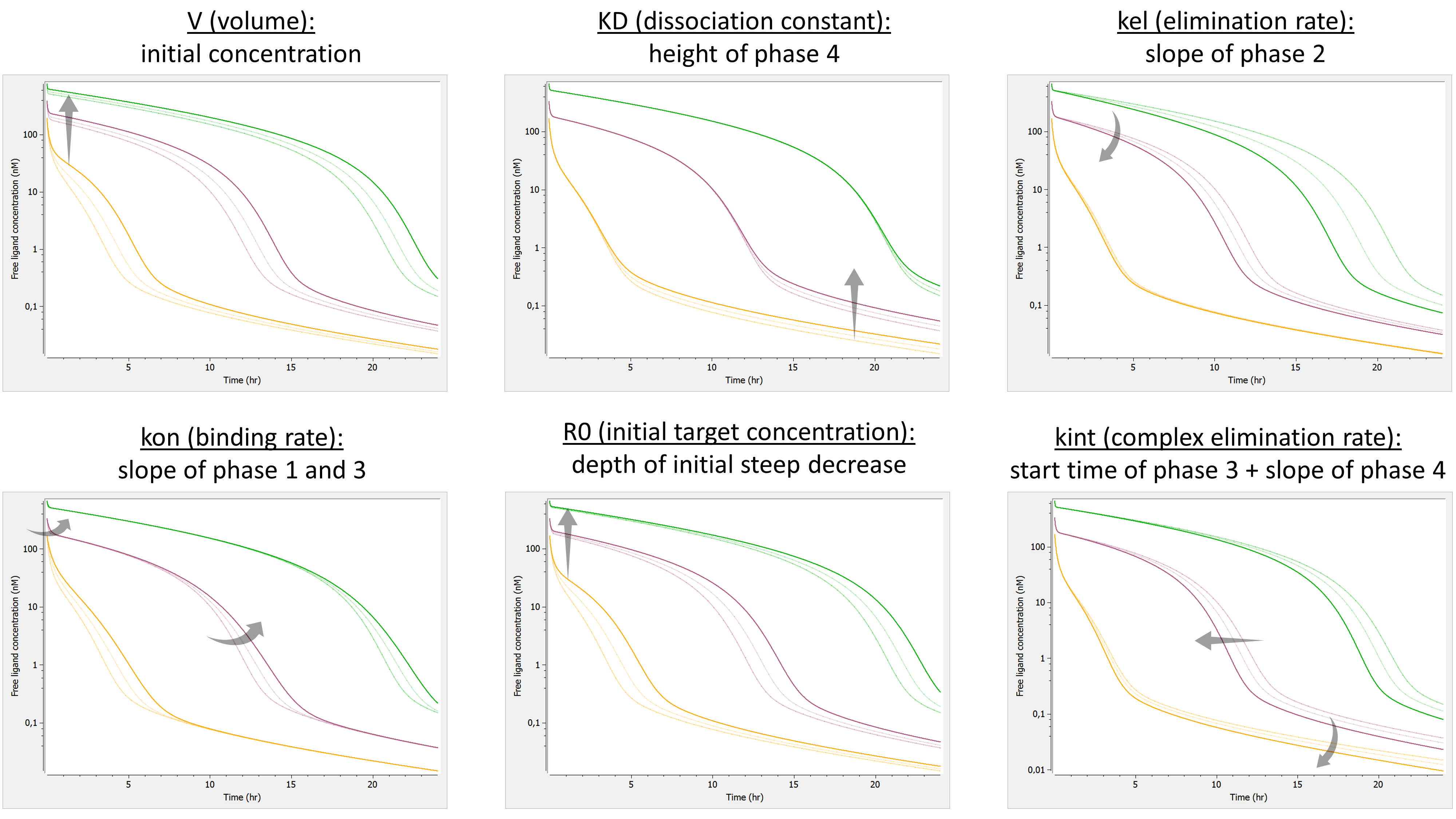

We investigate the influence of each parameter on the typical free ligand concentration-time shape for several dose amounts (bolus administration).

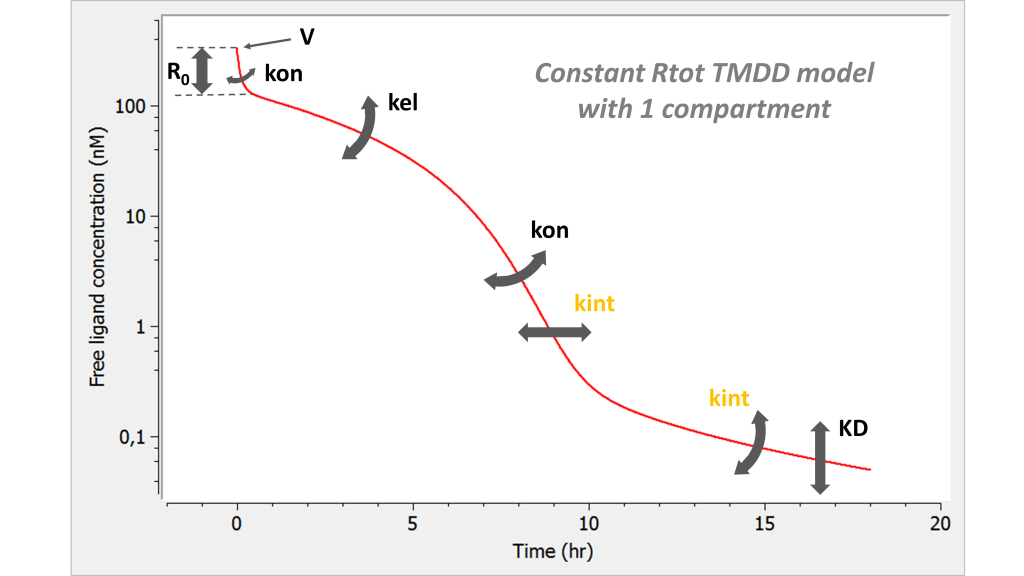

The summary figure is the following:

On opposite to the QE/QSS models, the constant Rtot model still captures all four phases of the free ligand concentration-time curve. However, note that because , kint now influences both the start time of phase 3 (as ksyn was doing in the full model), and height of phase 4 (and very slightly its slope

at low doses). The flexibility on the slope of phase 4 is mostly missing.

## Model with 2 compartments

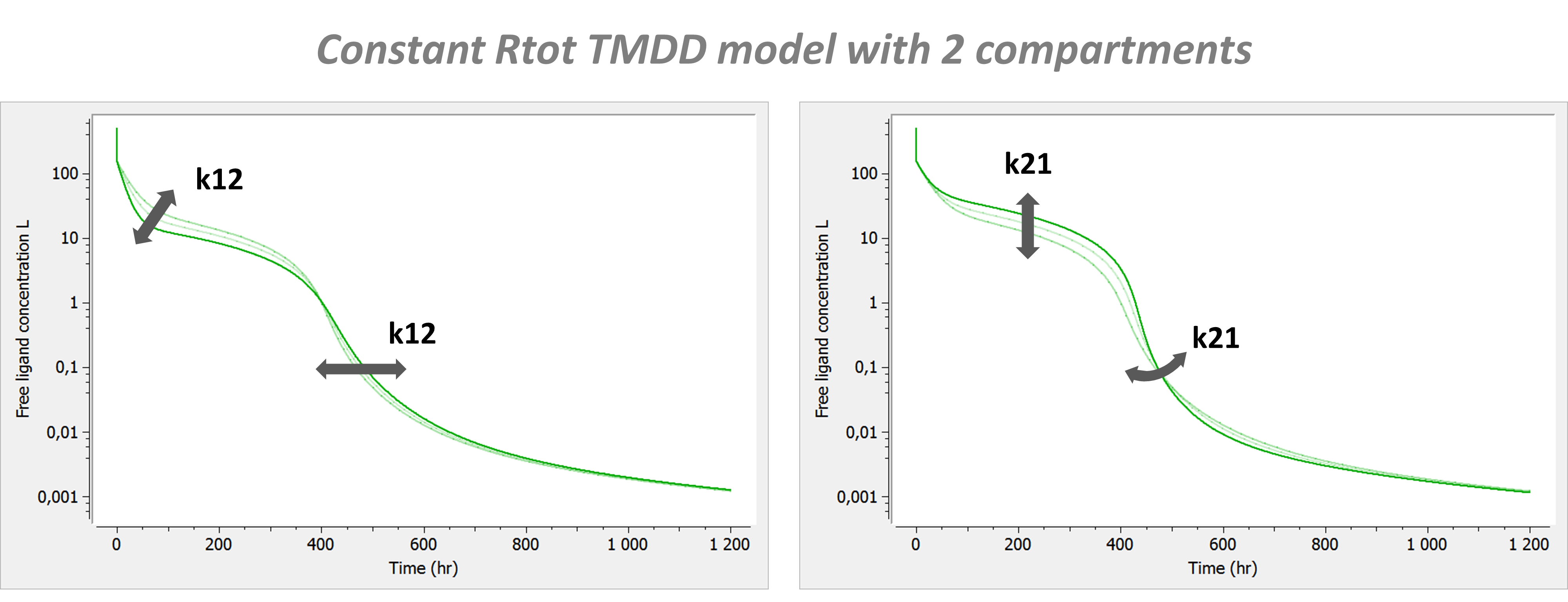

If a second compartment is added, the shape is modified in the following way. Note that kon has been chosen large (very steep phase 1), to better focus on phase 2, where k12 and k21 have their main effect.
