Bioequivalence

After running the “NCA” task to calculate the NCA PK parameters, the “Bioequivalence” task can be launched to compare the calculated PK parameters between two groups, usually one receiving the “test” formulation and the other the “reference” formulation.

Bioequivalence task

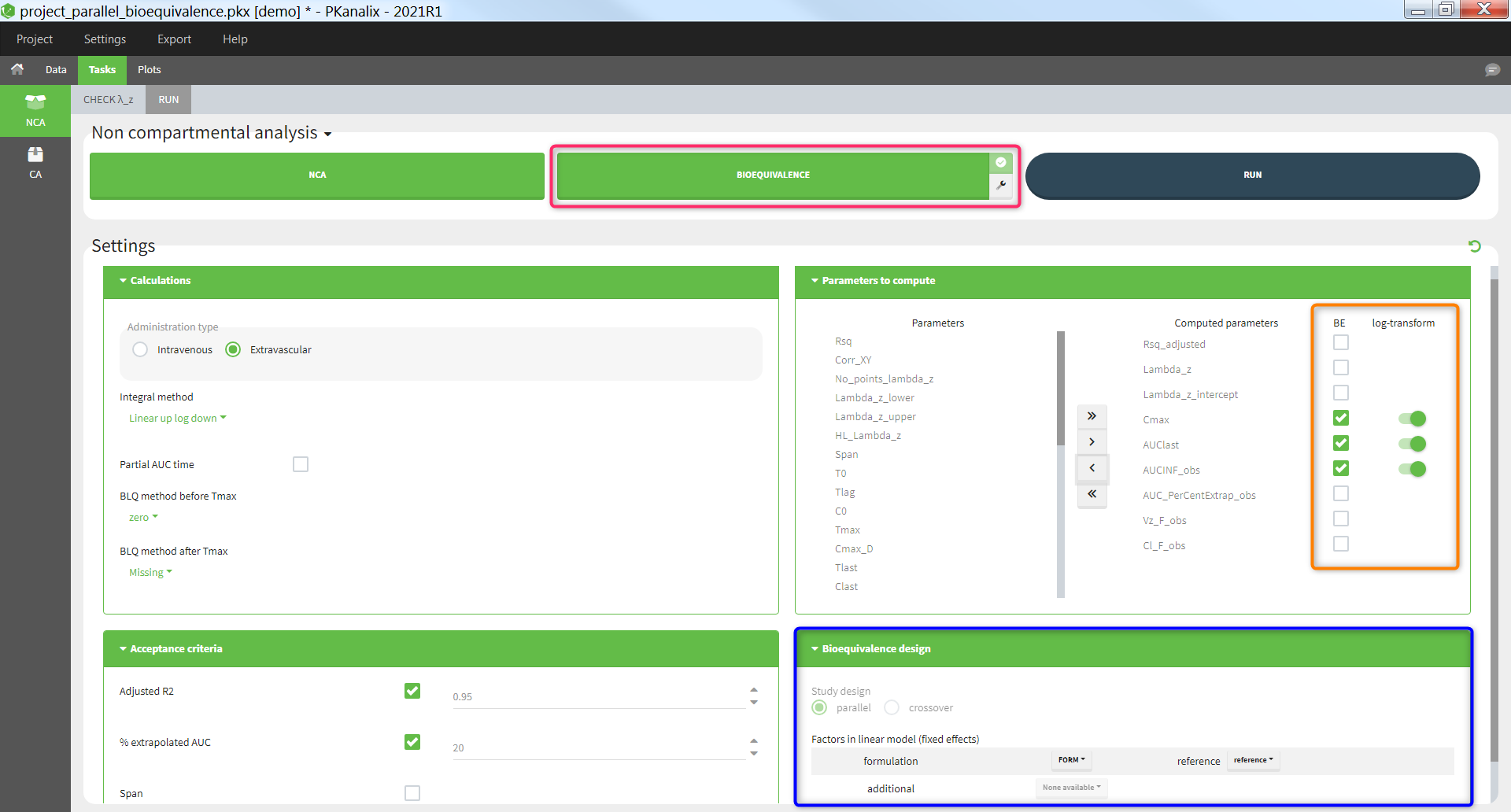

The “Bioequivalence” task is available if at least one categorical covariate column has been tagged in the “Data” tab. The “Bioequivalence” task can only be run after running the “NCA” task. It can be run by clicking on the “Bioequivalence” task button (highlighted in pink below) or by selecting it as part of the scenario (checkbox in the upper right corner of the “Bioequivalence” button) and clicking the “Run” button. The parameters to be included in the bioequivalence analysis are selected in the section “Parameters to compute / BE” (highlighted in orange), where the user can also indicate if the parameter should be log-transformed or not. The fixed effects included in the linear model can be chosen in the section “Bioequivalence design” (highlighted in blue).

Bioequivalence results

The results of the bioequivalence analysis are shown three tables in the “Results” tab, in the “BE” subtab.

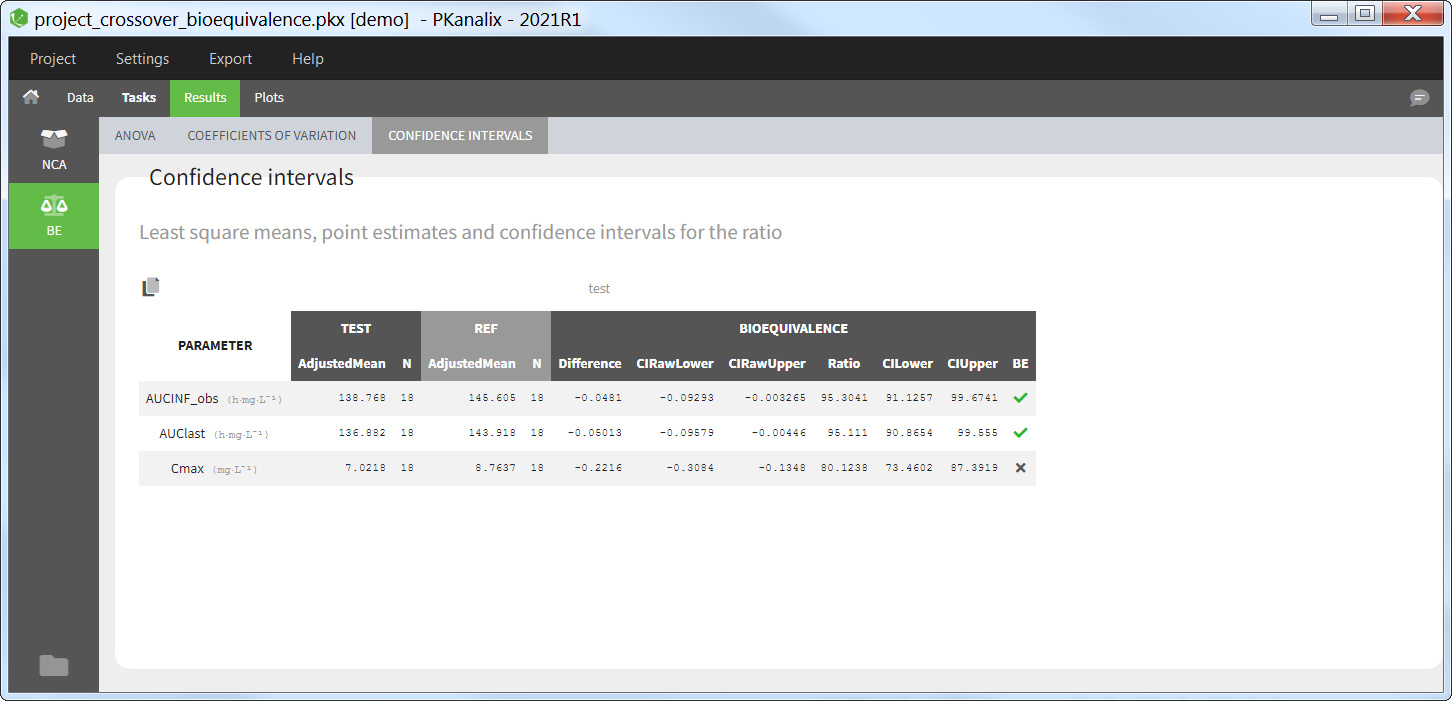

Confidence intervals

The table of confidence intervals is the key bioequivalence table that determines if the two formulations are equivalent or not. For each parameter selected for bioequivalence analysis, the following information is given:

• the adjusted means (i.e., least square means) for each formulation,

• the number of individuals for each formulation,

• the formulation difference (see calculation rules) and the corresponding confidence interval,

• the formulation ratio (see calculation rules) and the corresponding confidence interval.

If N formulations are present in the dataset, N-1 tables are shown.

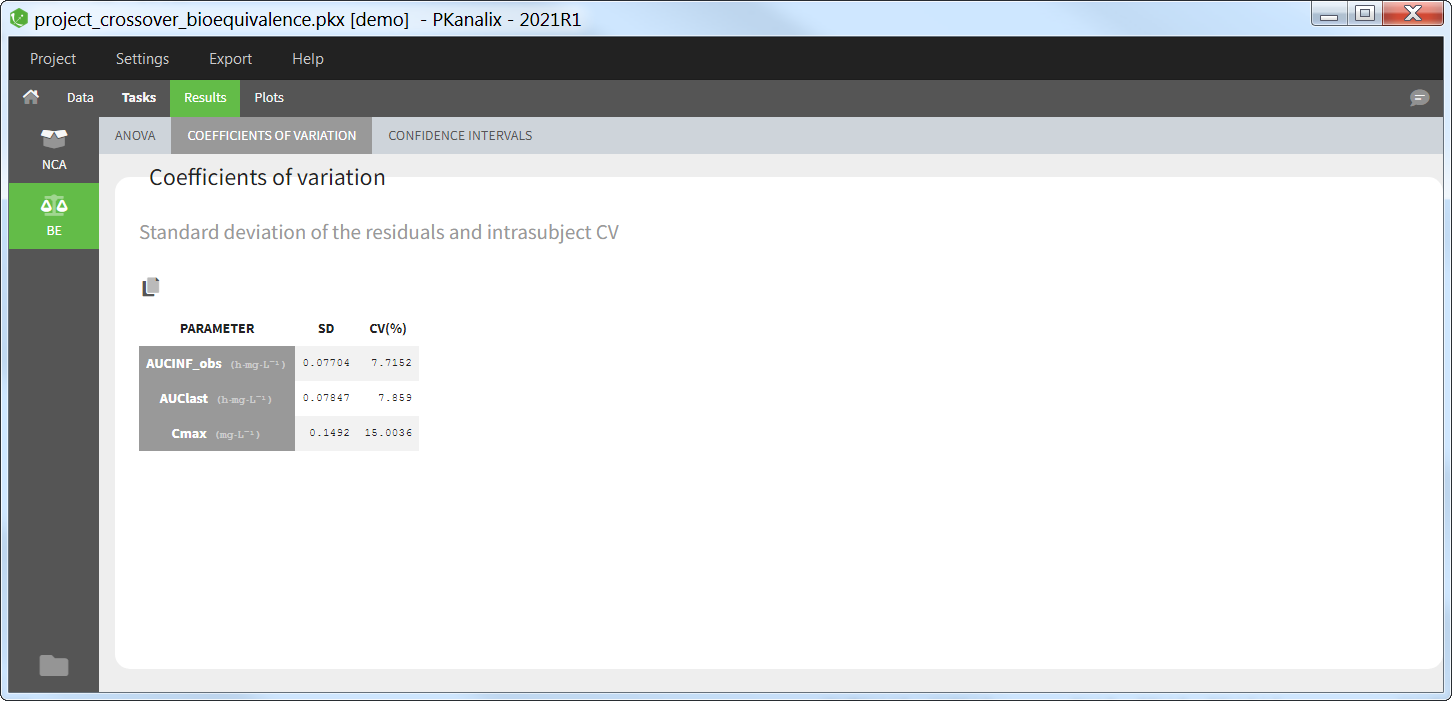

Coefficient of variation

For each parameter selected for bioequivalence analysis, this table reports the standard deviation of the residuals and the intra-subject coefficient of variation (CV).

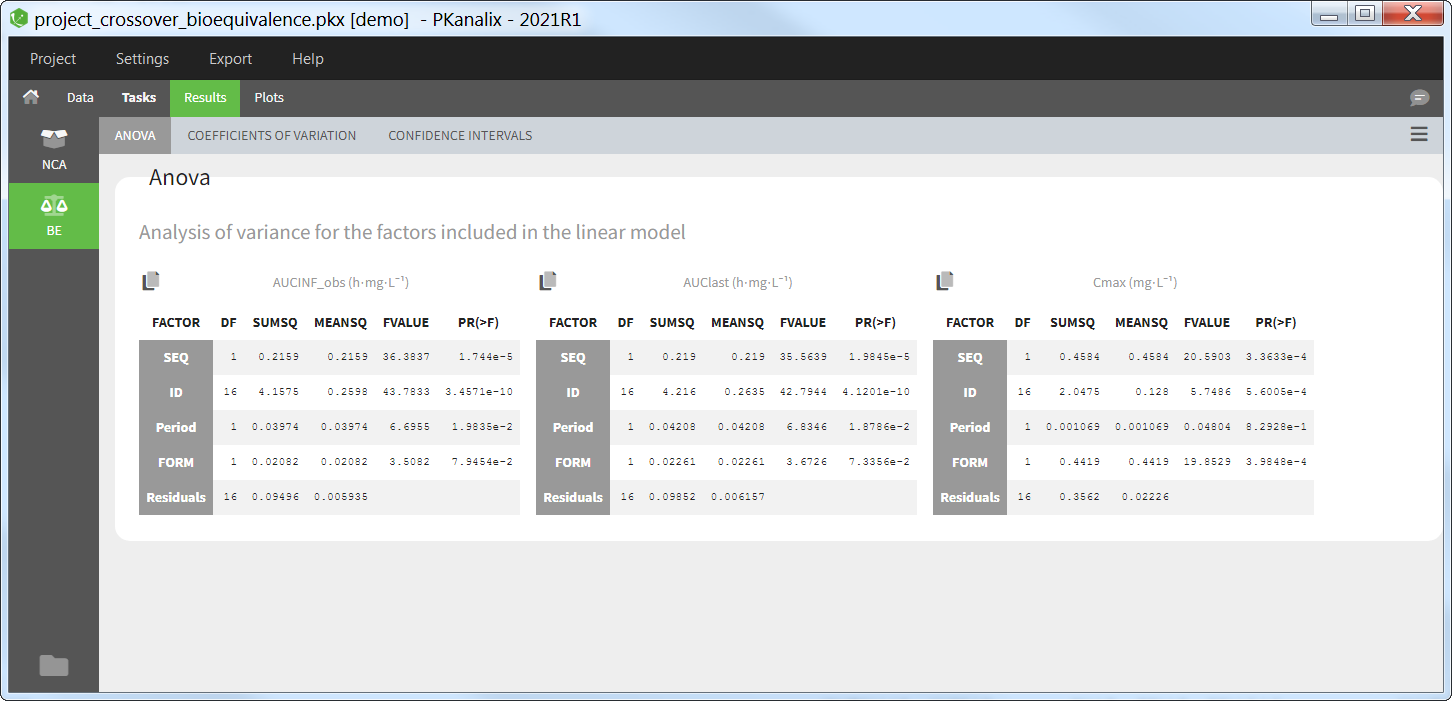

ANOVA

This table reports the analysis of variance (ANOVA) for the factors included in the linear model for each parameter selected for the bioequivalence analysis. For each factor, the degrees of freedom (DF), sum of squares (SUMSQ), mean squares (MEANSQ), F-value (FVALUE) and p-value (PR(>F)) are reported. A small p-value indicates a significant effect of the corresponding factor.
For the residuals, only the degrees of freedom, sum of squares, and mean squares are reported.

Bioequivalence plots

In the “Plots” tab, several plots are displayed:

• Sequence by period: This plot shows, for each parameter, the mean and standard deviation for each period, sequence and formulation.

• Subject by formulation: This plot shows, for each parameter, the subject-by-formulation interaction and the inter-subject variability.

• Confidence intervals: This plot shows the confidence intervals of the ratio of each parameter.

• NCA individual fits: This plot shows the individual concentration data with one subplot per individual for all periods.

Bioequivalence outputs

After running the Bioequivalence task, the following files are available in the result folder <result folder>/PKanalix/IndividualParameters/be:

• anova_XXX.txt: there is one file for each NCA parameter included in the bioequivalence analysis. It contains the ANOVA table with columns ‘Factor’ (factors included in the linear model), ‘Df’ (degrees of freedom), ‘SumSq’ (sum of squares), ‘MeanSq’ (mean squares), ‘FValue’ (F-value), ‘Pr(>F)’ (p-value). For the residuals (last line), the two last columns are empty.

• confidenceInterval_XXX.txt: there is one file per non-reference formulation. It contains the confidence interval table with columns ‘Parameter’ (parameter name), ‘AdjustedMeanTest’ (adjusted mean for the test formulation), ‘NTest’ (number of individuals for the test formulation), ‘AdjustedMeanRef’ (adjusted mean for the reference formulation), ‘NRef’ (number of individuals for the ref formulation), ‘Difference’ (formulation difference – see calculation rules), ‘CIRawLower’ (lower confidence interval bound for the difference), ‘CIRawUpper’ (upper confidence interval bound for the difference), ‘Ratio’ (formulation ratio – see calculation rules), ‘CILower’ (lower confidence interval bound for the ratio), ‘CIUpper’ (upper confidence interval bound for the ratio), ‘Bioequivalence’ (1 if the CI for the ratio falls within the BE limits, 0 otherwise)

• estimatedCoefficients_XXX.txt: there is one file for each NCA parameter included in the bioequivalence analysis. It contains the estimated coefficient for each category of each factor included in the linear model, as well as the intercept. This information is only available as an output table and is not displayed in the GUI. The table columns are ‘name’ (factor followed by the category), ‘estimate’ (estimated coefficient), ‘se’ (standard error), ‘tValue’ (estimate divided by the SE), and ‘Pr(>|t|)’ (p-value).

• variationCoef.txt: This file contains the standard deviation and coefficient of variation for each NCA parameter. Columns are ‘Parameter’, ‘SD’ and ‘CV(%)’
